Indoor rental event led screen-ShenZhen Megagem Tech Co.,Ltd

< >

Rental led display

Ligh weight and ultrathin body.

Front& rear assembly and disassembly.

Seamless installation,error<0.05mm.

Good heat dissipation,without flat cable design.

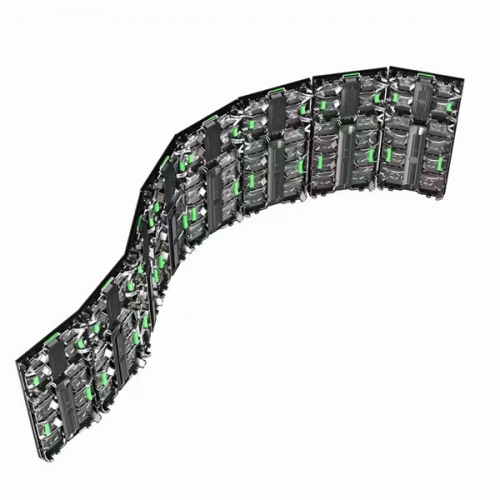

±15° Curved cabinet design, curved led display

Corner anti-collision design

Rental & Events	MIR-2.6	MIR-2.97	MIR-3.91
Pixel Pitch (mm)	2.6	2.97	3.91
Pixel Density (dot/㎡ )	147,456	113,569	65,536
LED Type	SMD1515	SMD2121	SMD2121
Module Size (W x H x D)mm	250x250x15	250x250x15	250x250x15
Module Resolution (W x H)	96x96	84x84	64x64
Module Weight (Kg)	0.61	0.60	0.60
Power Consumption per Module (W)	40	40	40
Driver Mode (Scan)	1/32	1/32	1/16
Brightness (cd/㎡ )	≥800	≥800	≥800
Grey Scale (bits)	14	14	14
Refresh Rate (Hz)	≥2,880	≥2,880	≥2,880
Cabinet Size (W x H x D)mm	500x500x85	500x500x85	500x500x85
Cabinet Resolution (W x H)	192x192	168x168	128x128
Cabinet Weight (Kg/cabinet )	7.5	7.5	7.5
Max Power Consumption (W/㎡ )	≤630	≤650	≤640
Average Power consumption (W/㎡ )	220	240	230
View Angle (Hº/Vº)	120/120	120/120	120/120
Mini View Distance (m)	2	3	4
Operating Use Temperature (℃)	-10℃~40℃
Storage Use Temperature (℃)	-20℃~50 ℃
Input Voltage (V)	100~240V
Input Power Frequency (Hz)	50Hz-60Hz
Failure Rate	<1/100,000
Signal Input Format	SDI, RGBHV, YUV,YC, Composite, HDMI,DVI, SD/HD-SDI etc.
Life Time (hrs)	100,000
