| Rental & Events | MIR-2.6 | MIR-2.97 | MIR-3.91 |
|---|---|---|---|
| Pixel Pitch (mm) | 2.6 | 2.97 | 3.91 |
| Pixel Density (dot/㎡ ) | 147,456 | 113,569 | 65,536 |
| LED Type | SMD1515 | SMD2121 | SMD2121 |
| Module Size (W x H x D)mm | 250x250x15 | 250x250x15 | 250x250x15 |
| Module Resolution (W x H) | 96x96 | 84x84 | 64x64 |
| Module Weight (Kg) | 0.61 | 0.60 | 0.60 |
| Power Consumption per Module (W) | 40 | 40 | 40 |
| Driver Mode (Scan) | 1/32 | 1/32 | 1/16 |
| Brightness (cd/㎡ ) | ≥800 | ≥800 | ≥800 |
| Grey Scale (bits) | 14 | 14 | 14 |
| Refresh Rate (Hz) | ≥2,880 | ≥2,880 | ≥2,880 |
| Cabinet Size (W x H x D)mm | 500x500x85 | 500x500x85 | 500x500x85 |
| Cabinet Resolution (W x H) | 192x192 | 168x168 | 128x128 |
| Cabinet Weight (Kg/cabinet ) | 7.5 | 7.5 | 7.5 |
| Max Power Consumption (W/㎡ ) | ≤630 | ≤650 | ≤640 |
| Average Power consumption (W/㎡ ) | 220 | 240 | 230 |
| View Angle (Hº/Vº) | 120/120 | 120/120 | 120/120 |
| Mini View Distance (m) | 2 | 3 | 4 |
| Operating Use Temperature (℃) | -10℃~40℃ | ||
| Storage Use Temperature (℃) | -20℃~50 ℃ | ||
| Input Voltage (V) | 100~240V | ||
| Input Power Frequency (Hz) | 50Hz-60Hz | ||
| Failure Rate | <1/100,000 | ||
| Signal Input Format | SDI, RGBHV, YUV,YC, Composite, HDMI,DVI, SD/HD-SDI etc. | ||
| Life Time (hrs) | 100,000 | ||
Indoor fixed display
Outdoor fixed display
Indoor rental display
Outdoor rental display
Small pixel display
Creative display
Stage led display

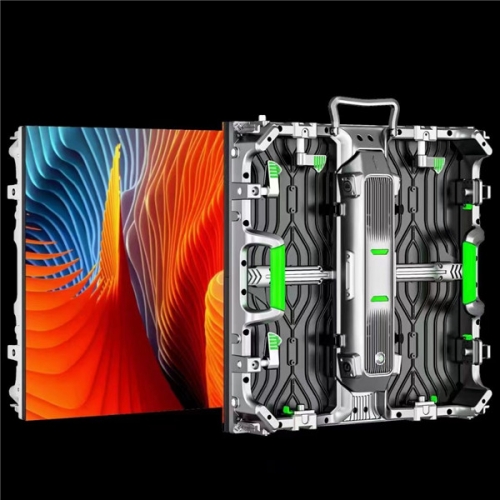

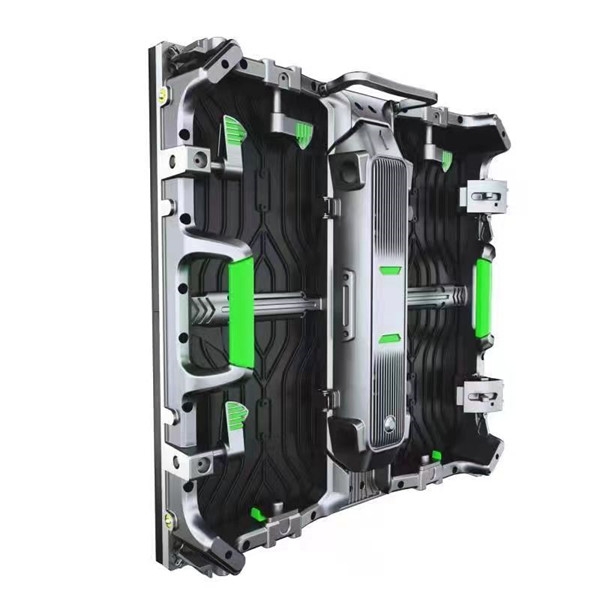

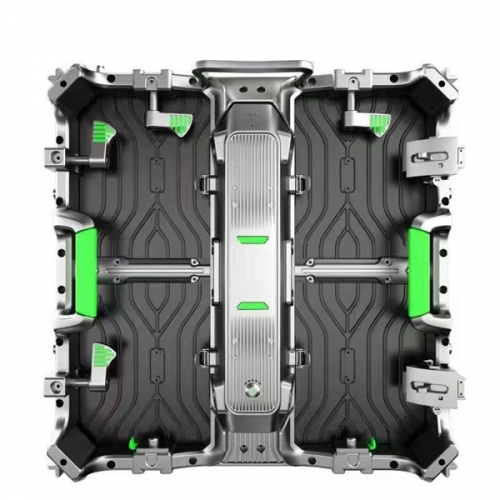

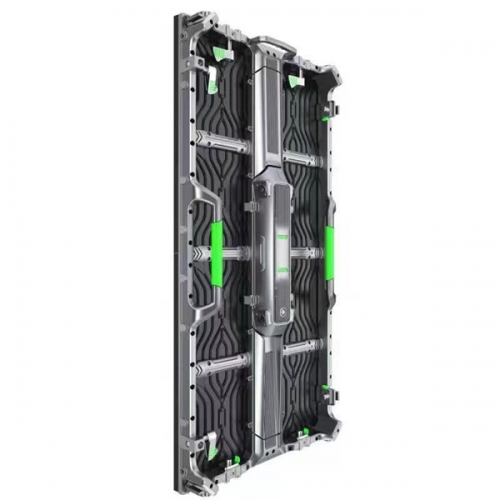

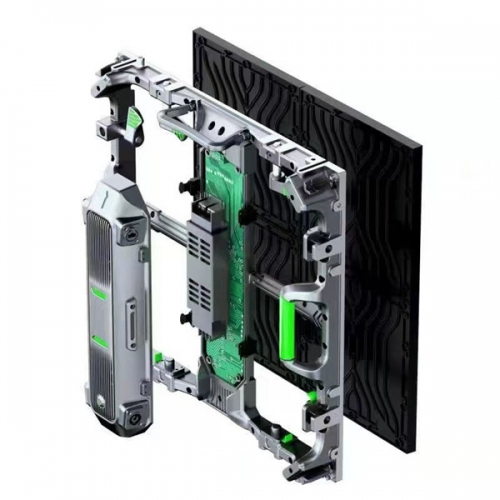

Indoor Die-Casting(500x500mm)
Ligh weight and ultrathin body.
Seamless installation,error<0.05mm.
Good heat dissipation,without flat cable design.

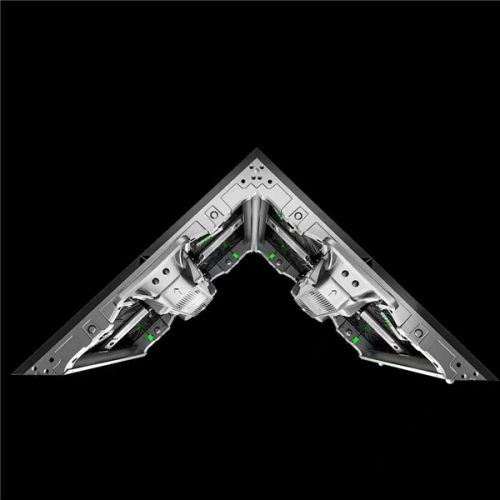

45° cabinet design， support HD cube seamless led screen
